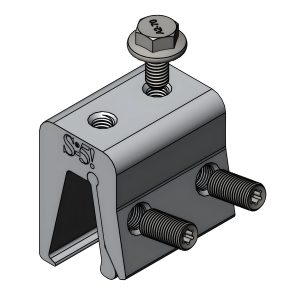

S-5-NH 1.5 Mini Clamp

$6.59 - $6.79

Designed specifically for 1-1/2” nail strip profiles with a wider horizontal dimension (> 0.475” and ≤ 0.800”), the S-5-NH 1.5 (“NH” stands for nail strip hinge) is an ideal mounting solution for VicWest Prestige, NewTech FF150 and similarly dimensioned profiles.

The innovative insert is a “hinge” design and features a toe to engage the female portion of the panel. It forms to the shape of the seam, preventing damage at the point of attachment, while offering you optimal holding strength. The hinge insert is also reversible to allow for proper fit on both wide and medium-width profiles.

For ease of installation, the T-30 Torx setscrews are angled upward to facilitate tool insertion. The hinged insert is also staked at one end to facilitate installation.

The NH 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

For nail strip profiles with 1” seam height, see “S-5-N.” See also the S-5-N 1.5 for nail flange metal roof profiles with a seam base dimension ≤ .50” (12.7 mm).

Product Sheets & Install Instructions

M8 Bolt NOT Included, Click Here to order!

PCS / BOX	39
1 – 39	$6.79
40 – 159	$6.69
160+	$6.59

Pricing subject to change at will.
Please allow 2-3 days processing time prior to shipping.

Return Policy

Experience peace of mind with our straightforward return policy. If you're not completely satisfied, we're here to help make it right.

Privacy Policy

Your trust is important to us. We're committed to protecting your personal information with the utmost care and security.

Credit Application

Unlock the benefits of flexible purchasing. Our easy credit application process is designed to get you what you need, when you need it.

Description

Product Specifications

For use on 1.5” (38 mm) nail strip profiles
Fits 1-1/2″ nail strip profiles – those with a wider horizontal base dimension – (> 0.475” and ≤ 0.800”)
Reversible hinge for wide and medium-width profiles
Hinge forms to shape of seam, preventing damage at point of attachment
Toe on hinge engages female portion of panel for optimal holding strength
Hinged insert staked at one end to facilitate installation
Angled setscrews for ease of tool insertion
Smaller than the standard S-5-NH 1.5
For light and medium-duty applications, such as solar and other utilities
One T-30 Torx round-point setscrew (Torx bit tip provided)
No M8 bolt included

Does the S-5-U Work for Your Roof Profile?

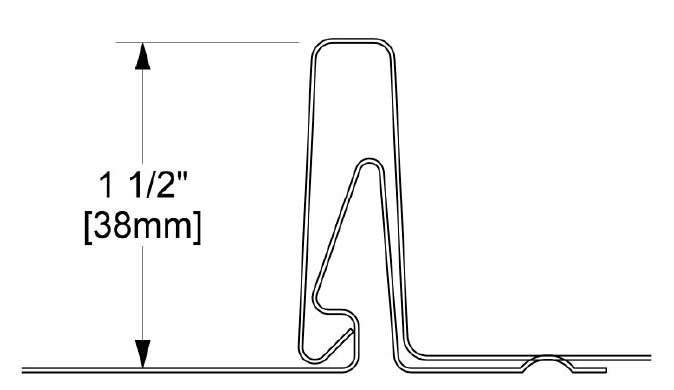

1-1/2″ Nail Strip

Additional information

Weight	0.26 lbs
Dimensions	2.25 × 2.25 × 2.25 in
